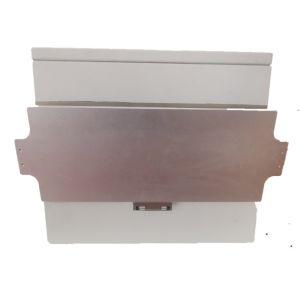

Customized Small Size 80dB 0.8~6GHZ WIFI Emi Rf Wireless Test
Manual Shield Box Enclosure
It is an economical manual singer-layer shielding box, which allows
engineers to create an affordable end-to-end test environment with
each UE shielded individually. MS382707 adopts the isolating
visible window to help users to keep monitoring for the whole
testing procedure directly from outside. It is most suitable to
test small devices like RF modules, smart phones, WIFI, Bluetooth,
smart grid equipment, automotive electronics, unmanned aerial
vehicles, smart home and so on.
* Filtered Ethernet - 10M, 100M, 1G
* Filtered USB 2.0 & 3.0
* AC / DC Power filter
* Signal transmission RF connectors
* RF Ports: SMA, SMB, BNC, TNC, UHF,
* Fiber optics: ST and Waveguide
* Data: DB9, DB15, DB25, DB50, RJ11
* Filtered HDMI, VGA & Audio Ports
* Air ventilation with AC or DC fan
* High performance shielded Air Vents
Application
1) 2.4GHz and 5 GHz wireless LAN products: signal block or
isolating for the wireless modem, wireless router, wireless LAN
card, wireless charger, wireless earphone, wireless headset, PCB
test
2) GPS products: cellular phones as W-CDMA of 3G, PDC and GSM; the
mobile phone with GPS function, RC drone;
3) Smart products: signal block or isolating for smart led,
smartwatch, smart security, smart robot, smart lock, smart ring,
smart bracelets), TV BOX(set-top box) 4)Measure products: water
measure, electricity measure, temperature measurements, etc)
Rf Test shield box specifications:
Working frequency(GHz) | 100MHz～6GHZ |
Shielding effect | ≥80 dB@2.4GHz/5.8GHz |
Interface Type (Kindly confirm which interface need) | VGA, DB9, DB25, 2.0USB, 3.0USB, SMA, RJ45, BNC, RCA, DC, AC, HDMI |
Numbers of filters | 1 pc as default |
Material | Metal plate |
Inner working dimensions (mm) | 270(W)*380(D)*68(H) |
Outside dimensions (mm) | 301(W)*462(D)*124(H) |
Weight (kg) | 10 kg |
Appearance of color | Blue(can be customized) |
Filter modules options for shielded boxes | Shielded boxes can be extended with different types of filters. All
available types of filters can be found below. |
Rf Shielded Enclosure Function
* This EMI/RFI-shielded box has up to 70 dB reduction of RF signals
up to 5 GHz. This makes the shielded box ideal for testing cellular
handsets, RFID, Bluetooth, Zigbee, WiMax, WLAN or similar wireless
devices.
* The box can be constructed in any size required.
* The box is well suited for the cases where the current state of
an electronic device needs to be frozen by blocking all wireless
contact with the outside world
* Many other shielded conduits are available on request. They may
optionally also be added later.
The Pneumatic auto shield box filter interface is suitable for
wireless terminal testing such as routers, set-top boxes,
drones,wireless headsets, wireless water meters, mobile phones,
etc. It has the following characteristics: Aluminum alloy
material,sturdy and durable, excellent shielding performance;
Modular design, more humane characteristics, users can choose
different interface combinations according to their needs
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | p:495(W)*595(D)*325(H) own:495(W)*595(D)*60(H) | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
| | ≥ 70dB @2.4GHZ ≥ 70dB @5.8GHZ | | | |
Shield Box is packaged in Export-Free Inspection and
Fumigation-Free Wooden Boxes, with a firm structure. Ensure that
the shielding box is not easily damaged during transportation. This
kind of wooden box is suitable for long-distance transportation,
including sea and air transportation, and can be exported to any
country in the world.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. or it is 15-20
days against the quantity if the goods are not in stock.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with charge
Q: What is your warranty?
A: One year
